Current Probes

Purchase

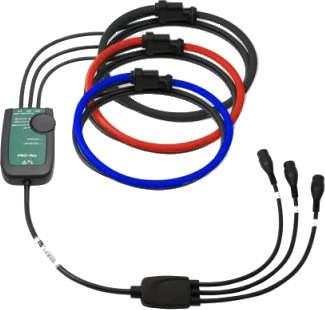

3-Phase Flexible Current Probe with 3VDC Full-Scale Output available in 24, 36 and 48 inch probe cable lengths.

Download PRO-flex ACP 6003_18 DataSheet

Compatible Instruments

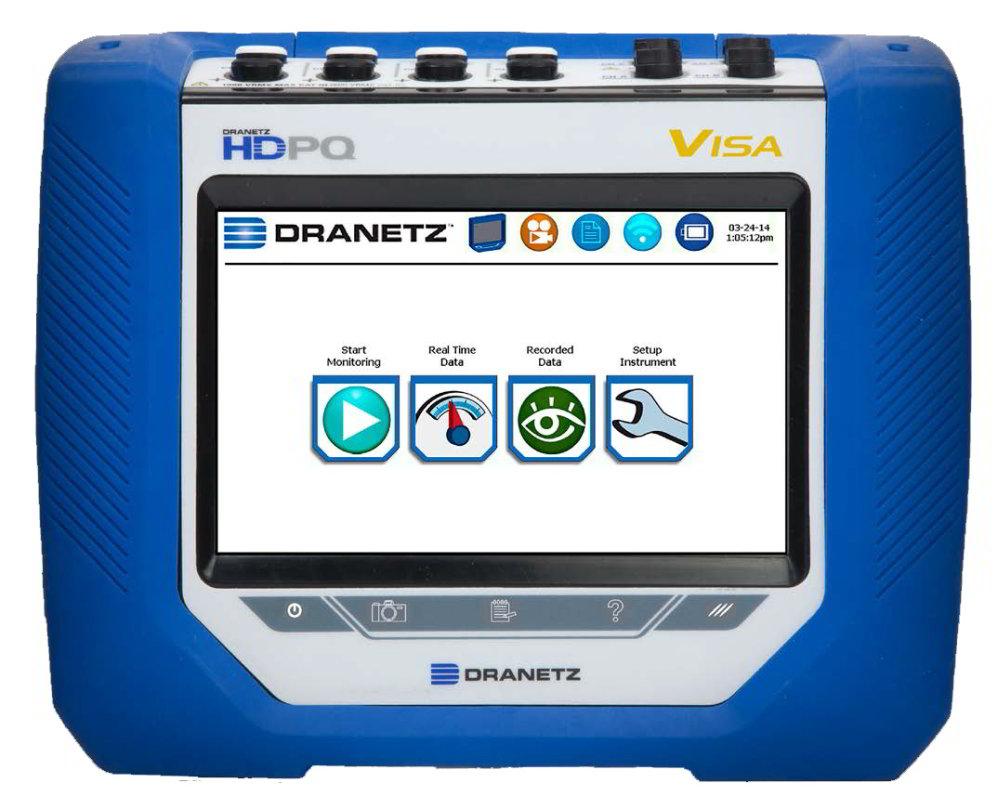

Dranetz HDPQ

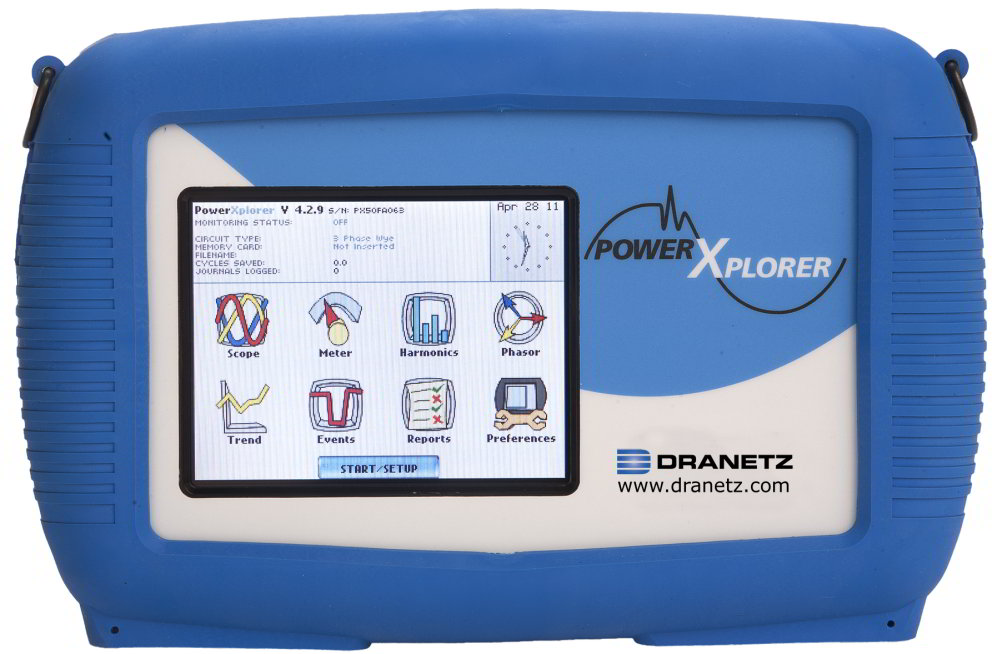

Dranets PX5

Dranetz PG4400

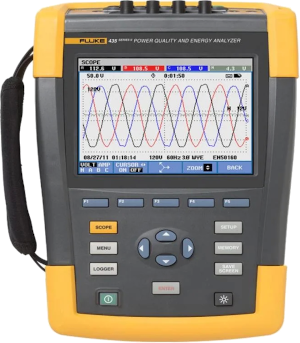

Fluke 43x

Can be connected to most measuring Dranetz Power instruments including multimeters, oscilloscopes PQ recording devices. [Note: most of these devices have 4mm banana jack inputs and would require a standard BNC-to-Double Banana adapter.]

Purchase

3-Phase Flexible Current Probe with 3VDC Full-Scale Output available in 24, 36 and 48 inch probe cable lengths

Download PRO-flex ACP 3003_18 DataSheet

Compatible Instruments

Dranetz HDPQ

Dranets PX5

Dranetz PG4400

Fluke 43x

Purchase

1-Phase Flexible Current Probe [Compatible with Fluke 1750 and RPM Power Recorders] available in 24, 36 and 48 inch probe cable lengths

Download PRO-flex ACF 5000_3 DataSheet

Compatible Instruments

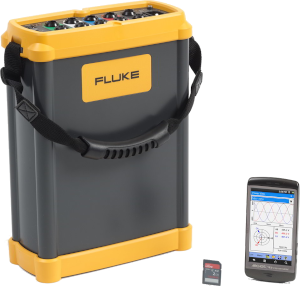

Fluke 1750 Power Monitor

Purchase

Single Phase Flexible AC Current Probe with 3 VDC Full-Scale Output available in 24, 36 and 48 inch probe cable lengths

Download PRO-flex ACP 6000_3 DataSheet

Compatible Instruments

Dranetz HDPQ

Dranets PX5

Dranetz PG4400

Fluke 43x

Purchase

Single Phase Flexible AC Current Probe with 3 VDC Full-Scale Output available in 24, 36 and 48 inch probe cable lengths

Download PRO-flex ACP 3000_3 DataSheet

Compatible Instruments

Dranetz HDPQ

Dranets PX5

Dranetz PG4400

Fluke 43x

Subcategories

PRO-flex probes

Micro-flex

Page 1 of 2

Start
Prev
1
2
Next
End

Current Ranges	60A / 600A / 6000A AC RMS (selectable via rotary switch)
Output Sensitivity	50mV / 5mV / 0.5mV per A (AC coupled)
Accuracy (at 25°C)	± 1% of reading ± 0.1A (60A range) ± 1% of reading ± 1A (600A / 6000A range)

Probe and Cable Material	Alcryn 2070 NC LATENE 7H2W V0
Probe Cable Length	610mm (24”) / 915mm (36”) / 1220mm (48”)
Probe Cable Diameter	9.9mm (nominal)
Cable Length	2m (Probe to Integrator box)
Output	0.5m long lead terminated with 3 X safety male BNC

Current Ranges	30A / 300A / 3000A AC RMS (selectable via rotary switch)
Output Sensitivity	100mV / 10mV / 1mV per A (AC coupled)
Accuracy (at 25°C)	± 1% of reading ± 0.1A (30A range) ± 1% of reading ± 1A (300A / 3000A range)

Probe and Cable Material	Alcryn 2070 NC LATENE 7H2W V0
Probe Cable Length	610mm (24”) / 915mm (36”) / 1220mm (48”)
Probe Cable Diameter	9.9mm (nominal) Cable Length 2m (Probe to Integrator box)
Output	0.5m long lead terminated with 3 X safety male BNC

Current Ranges	100A / 1000A / 5000A AC RMS (selectable via rotary switch)
Output Sensitivity	20mV / 2mV / 0.4mV per A (AC coupled)
Accuracy	(at 25°C) ± 1% of reading ± 0.1A (100A range) ± 1% of reading ± 1A (100A / 5000A range)

PRO-flex ACP 6003_18 (6000A)

Electrical Characteristics

Physical Characteristics

Compatible Instruments

PRO-flex ACP 3003_18 (3000A)

Electrical Characteristics

Physical Characteristics

Compatible Instruments

PRO-flex ACF 5000_3 Three Range (100A/1000A/5000A)

Electrical Characteristics

Physical Characteristics

Compatible Instruments

PRO-flex ACP 6000_3 Three Range (60A/600A/6000A)

Electrical Characteristics

Physical Characteristics

Compatible Instruments

PRO-flex ACP 3000_3 Three Range (30A/300A/3000A)

Electrical Characteristics

General Characteristics

Compatible Instruments
