3-Phase Flexible Current Probe with 3VDC Full-Scale Output available in 24, 36 and 48 inch probe cable lengths.
Download PRO-flex ACP 6003_18 DataSheet Electrical Characteristics
| Current Ranges | 60A / 600A / 6000A AC RMS (selectable via rotary switch) |
| Output Sensitivity | 50mV / 5mV / 0.5mV per A (AC coupled) |
| Accuracy (at 25°C) | ± 1% of reading ± 0.1A (60A range) ± 1% of reading ± 1A (600A / 6000A range) |
Physical Characteristics
| Probe and Cable Material | Alcryn 2070 NC LATENE 7H2W V0 |
| Probe Cable Length | 610mm (24”) / 915mm (36”) / 1220mm (48”) |
| Probe Cable Diameter | 9.9mm (nominal) |
| Cable Length | 2m (Probe to Integrator box) |
| Output | 0.5m long lead terminated with 3 X safety male BNC |
3-Phase Flexible Current Probe with 3VDC Full-Scale Output available in 24, 36 and 48 inch probe cable lengths
Download PRO-flex ACP 3003_18 DataSheet Electrical Characteristics
| Current Ranges | 30A / 300A / 3000A AC RMS (selectable via rotary switch) |
| Output Sensitivity | 100mV / 10mV / 1mV per A (AC coupled) |
| Accuracy (at 25°C) | ± 1% of reading ± 0.1A (30A range) ± 1% of reading ± 1A (300A / 3000A range) |
Physical Characteristics
| Probe and Cable Material | Alcryn 2070 NC LATENE 7H2W V0 |
| Probe Cable Length | 610mm (24”) / 915mm (36”) / 1220mm (48”) |
| Probe Cable Diameter | 9.9mm (nominal) Cable Length 2m (Probe to Integrator box) |
| Output | 0.5m long lead terminated with 3 X safety male BNC |
1-Phase Flexible Current Probe [Compatible with Fluke 1750 and RPM Power Recorders] available in 24, 36 and 48 inch probe cable lengths
Download PRO-flex ACF 5000_3 DataSheet Electrical Characteristics
| Current Ranges | 100A / 1000A / 5000A AC RMS (selectable via rotary switch) |
| Output Sensitivity | 20mV / 2mV / 0.4mV per A (AC coupled) |
| Accuracy | (at 25°C) ± 1% of reading ± 0.1A (100A range) ± 1% of reading ± 1A (100A / 5000A range) |
Physical Characteristics
| Probe and Cable Material | Alcryn 2070 NC LATENE 7H2W V0 |
| Probe Cable Length | 610mm (24”) / 915mm (36”) / 1220mm (48”) |
| Probe Cable Diameter | 9.9mm (nominal) |
| Cable Length | 2m (Probe to Integrator box) |
| Output | 0.5m long lead terminated with a 6-pin male LEMO |
Single Phase Flexible AC Current Probe with 3 VDC Full-Scale Output available in 24, 36 and 48 inch probe cable lengths
Download PRO-flex ACP 6000_3 DataSheet Electrical Characteristics
| Current Ranges | 60A / 600A / 6000A AC RMS (selectable via rotary switch) |
| Output Sensitivity | 50mV / 5mV / 0.5mV per A (AC coupled) |
| Accuracy | (at 25°C) ± 1% of reading ± 0.1A (60A range) ± 1% of reading ± 1A (600A / 6000A range) |
Physical Characteristics
| Probe and Cable Material | Alcryn 2070 NC LATENE 7H2W V0 |
| Probe Cable Length | 610mm (24”) / 915mm (36”) / 1220mm (48”) |
| Probe Cable Diameter | 9.9mm (nominal) Cable Length 2m (Probe to Integrator box) |
| Output | 0.5m long lead terminated with a safety male BNC |
3-Phase 24" Flexible Current Probe with 3VDC Full-Scale Output.
24" circumference.
New design with 3 ranges: 600 A / 1200 A / 3000 A.
New power supply - battery or instrument power.
Download PRO-flex ACP3003_17 DataSheet Electrical Characteristics
| Current Ranges | 600A / 1200A / 3000A AC RMS |
| Output Sensitivity | 5mV / 2.5mV / 1 mV / A [x200/x400/x1000] |
| Accuracy (at 25°C) | ±1% of reading ± 1A |
Physical Characteristics
| Probe and Cable Material | Alcryn 2070 NC LATENE 7H2W V0 |
| Probe Cable Length | 610mm (24”) / 915mm (36”) / 1220mm (48”) |
| Probe Cable Diameter | 9.9mm (nominal) | Cable Length 2m (Probe to Integrator box) |
| Output | 0.5m long lead terminated with 3 X safety male BNC |
Single Phase Flexible AC Current Probe with 3 VDC Full-Scale Output available in 24, 36 and 48 inch probe cable lengths
Download PRO-flex ACP 3000_3 DataSheet Electrical Characteristics
| Current Ranges | 30A / 300A / 3000A AC RMS (selectable via rotary switch) |
| Output Sensitivity | 100mV / 10mV / 1mV per A (AC coupled) |
| Accuracy | (at 25°C) ± 1% of reading ± 0.1A (30A range) ± 1% of reading ± 1A (300A / 3000A range) |
General Characteristics
| Probe and Cable Material | Alcryn 2070 NC LATENE 7H2W V0 |
| Probe Cable Length | 610mm (24”) / 915mm (36”) / 1220mm (48”) |
| Probe Cable Diameter | 9.9mm (nominal) |
| Cable Length | 2m (Probe to Integrator box) |
| Output | 0.5m long lead terminated with a safety male BNC |
Single Phase AC Current Probe
The new Micro-flex ACP 3003_16 is a single-phase AC current clamp utilizing the Rogowski principle. It can be used to measure currents up to 3000A from very low frequencies to 10kHz. The flexible and lightweight measuring head allows quick and easy installation in hard to reach areas and with large conductors.
Download Micro-flex ACP3000_16 DataSheet Electrical Characteristics
| Current Ranges | 600 A/1200 A/3000A AC RMS (selectable via rotary switch) |
| Output Sensitivity | 5mV/2.5mV/1.0mV/A [x200/x400/x1000] |
| Accuracy (at 25°C) | ±1% of reading ± 1A |
Physical Characteristics
| Probe and Cable Material | Alcryn 2070 NC, Arnite TO6-200SNF |
| Probe Cable Length | 70mm (3”) / 100mm (4”) |
| Probe Cable Diameter | 6mm (nominal) |
| Cable Length | 2m (Probe to Integrator box) |
| Output | 0.5m long lead terminated with a safety male BNC |

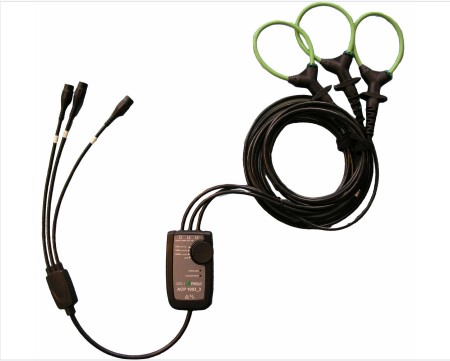

Three Phase AC Current Probe
The new Micro-flex ACP 3003_16 is a 3-Phase AC current clamp utilizing the Rogowski principle. It can be used to measure currents up to 3000A from very low frequencies to 10kHz. The flexible and lightweight measuring head allows quick and easy installation in hard to reach areas and with large conductors.
Download Micro-flex ACP3003_16 DataSheet Electrical Characteristics
| Current Ranges | 600 A/1200 A/3000A AC RMS (selectable via rotary switch) |
| Output Sensitivity | 5mV/2.5mV/1.0mV/A [x200/x400/x1000] |
| Accuracy (at 25°C) | ±1% of reading ± 1A |
Physical Characteristics
| Probe and Cable Material | Alcryn 2070 NC, Arnite TO6-200SNF |
| Probe Cable Length | 70mm (3”) / 100mm (4”) |
| Probe Cable Diameter | 6mm (nominal) |
| Cable Length | 2m (Probe to Integrator box) |
| Output | 0.5m long lead terminated with a safety male BNC |
