Equipment reliability can be affected by power disturbances. When that question arises it’s important to assess if power quality is “good or bad?” Such investigations can be protracted and expensive. The cellular modem-equipped POWERetc PQube 3 Pass-Thru is a unique and efficient tool for identifying power quality issues and energy use of sensitive electronic equipment - remotely. It gives field service groups the ability to respond to customer concerns swiftly, professionally and very economically. Instead of sending a technician, you just mail the PQube 3 Pass-Thru (PPT) to the troubled site. Thanks to the unit's cellular modem, unit setup, data gathering and report generation are all possible from your desktop computer, laptop or tablet.
Download PQube 3 Pass-Thru DataSheet Download PQube3 Pass-Thru Flyer Package
Basic Package |
Pricing |
Touchless Troubleshooting with the Cellular Modem-Equipped PQube 3 Pass-Thru
Note: Shipping, Insurance and Taxes are Added to Prices |
Rent & Purchase: |
Trouble-shoot and analyze power quality anywhere and anytime
The PQube 3 Portable is a compact, lightweight, and self-powered unit designed for on the go temporary power analyzing measurement campaigns. It comes in a rugged case with everything you need for a quick and easy set-up. Simply unpack and connect the unit to view the health of the power system, either numerically or graphically, then share the data through screenshots, graphs, or reports. Its ideal for use in harsh environments and enables power professionals to quickly visualize, analyze, and pin-point power and energy disturbances by providing real-time actionable data. Chose the PQube 3 Portable to get fast, reliable, and accurate answers to tough power quality problems.
Features
- 4-quadrant ANSI Class 0.2 revenue–grade energy
- Up to 2 three-phase loads
- Connects direct to voltages up to 690 V
- Class A IEC 61000-4-30 Ed3 certified
- Detects and records high-frequency impulses at 4 MHz
- Measures i and records 2 kHz~150kHz emissions
- Monitors DC power and process parameters with 4 additional AC/DC analog channels
- 32 GB internal flash memory
PQube 3 Rugged
Optimized for remote monitoring of power, energy, and power quality, for indoor or outdoor locations. It is the most economical, and efficient way to monitor power - no special software is needed. The PQube 3 Rugged is equipped with a built-in cellular modem. This time and labor saving feature allows for remote setup to be performed and reports to be sent automatically by email. It is ideal for field service organizations, engineering consultants, contractors, facility owners, and testing organizations to monitor and report on all aspects of power - for individual loads, or an entire plant.
Download PQube 3 Rugged DataSheet Package
Basic Package |
Pricing |
PQube 3 Rugged Cellular Modem-Equipped including PROSyS PRO-Flex 3000_3 Three Range Probe Set
Note: Shipping, Insurance and Taxes are Added to Prices |
Rent & Purchase: |

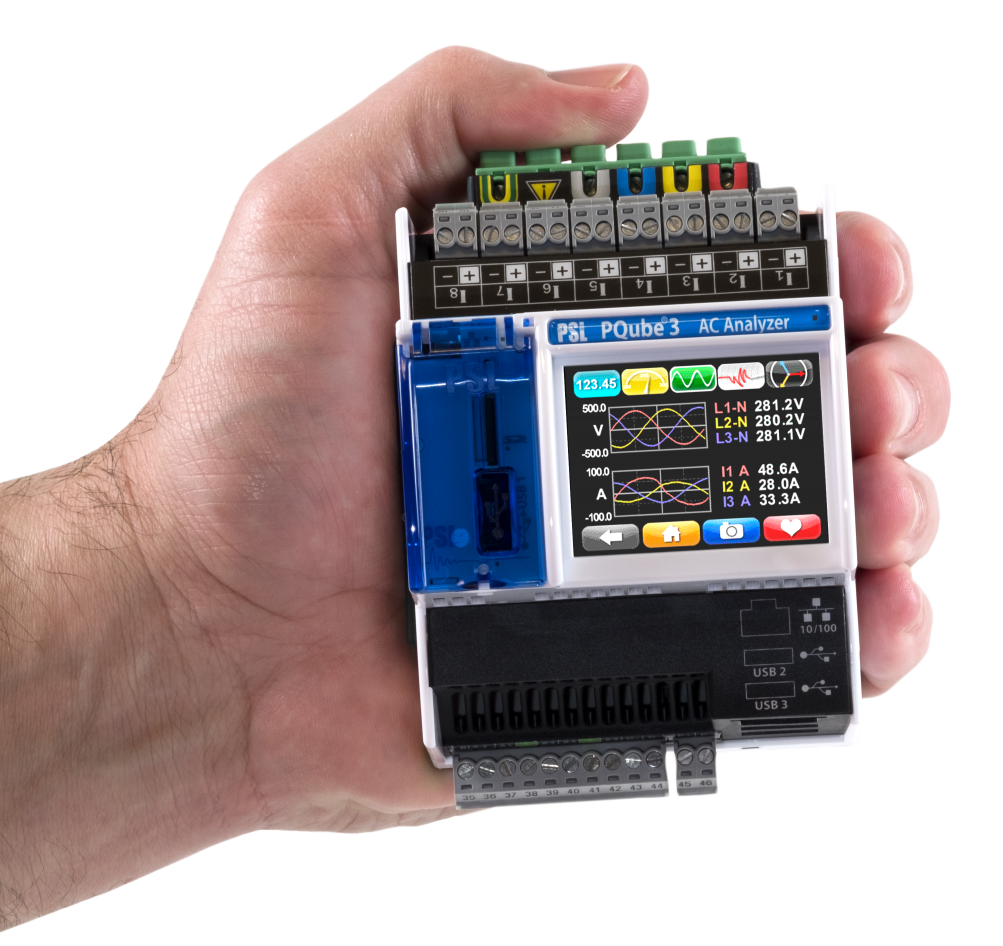

PQube 3 Power Analyzer
PQube 3 Power AnalyzerThis compact instrument is simply the best power monitor and real-time sensor you can buy.
It records every type of AC power disturbance – including 4 MHz sampling of impulses – and it is an IEC 61000-4-30, edition 3 Class A certified, ultra-precise revenue-grade energy meter. Monitor up to two three-phase loads, or eight single-phase loads with a single instrument.
It goes beyond AC power too. Records environmental data – such as temperature, humidity and barometric pressure, vibration, 3-axis acceleration – as well as process parameters, including torque, RPM, fuel level, water flow, and more.
Easy to install, easy to use! Delivers ultra-precise results immediately to your inbox.
Download PQube 3 Power Analyzer DataSheet Electrical Characteristics
| Voltage Input | 4 inputs, referenced to earth (Range: 0 ~ 750 VAC (L-N), 0 ~ 1300 VAC (L-L), impedance: 4.8MΩ) |
| Current Input | 8 inputs, differential (Range: 0.333Vrms, 10Vpk, 0 ~ 6000 Amp with CTs, impedance: 33.3 kΩ) |
| Frequency Range | 50 Hz, 60 Hz, 400 Hz, or 16.67 Hz |
| Accuracy | ±0.05% rdg ±0.05% FS typical (10% ~ 150% of nominal) |
Physical Characteristics
| Dimensions & weight | 35 mm DIN rail mountable 4.33 in X 2.89 in X 3.08 in (metric: 11.0 cm X 7.34 cm X 7.82 cm) 10.5 oz (300 g) |
| Operating Environment | -20 ~ 65 °C (55 °C with PM2 AUX load), 5 ~ 95% RH (inside use), <2000 m above sea level (for EMC immunity, overvoltage, and other conditions, see full specs) |
| Temperature and humidity | -20 ~ +80 °C (-4 ~ 176 °F) | 0 ~ 100 % RH |
